Masonry cavity wall tie with engineered safety end to maximise bond.
Steel wall ties act as a thermal bridge in masonry cavity walls. The award-winning Teplo range of thermally insulating wall ties solve this problem. The range is manufactured from pultruded basalt fibers, an Advanced Composite Material which has a thermal conductivity of only 0.7W/mK which is over 70 times less than steel and 20 times less than stainless steel.

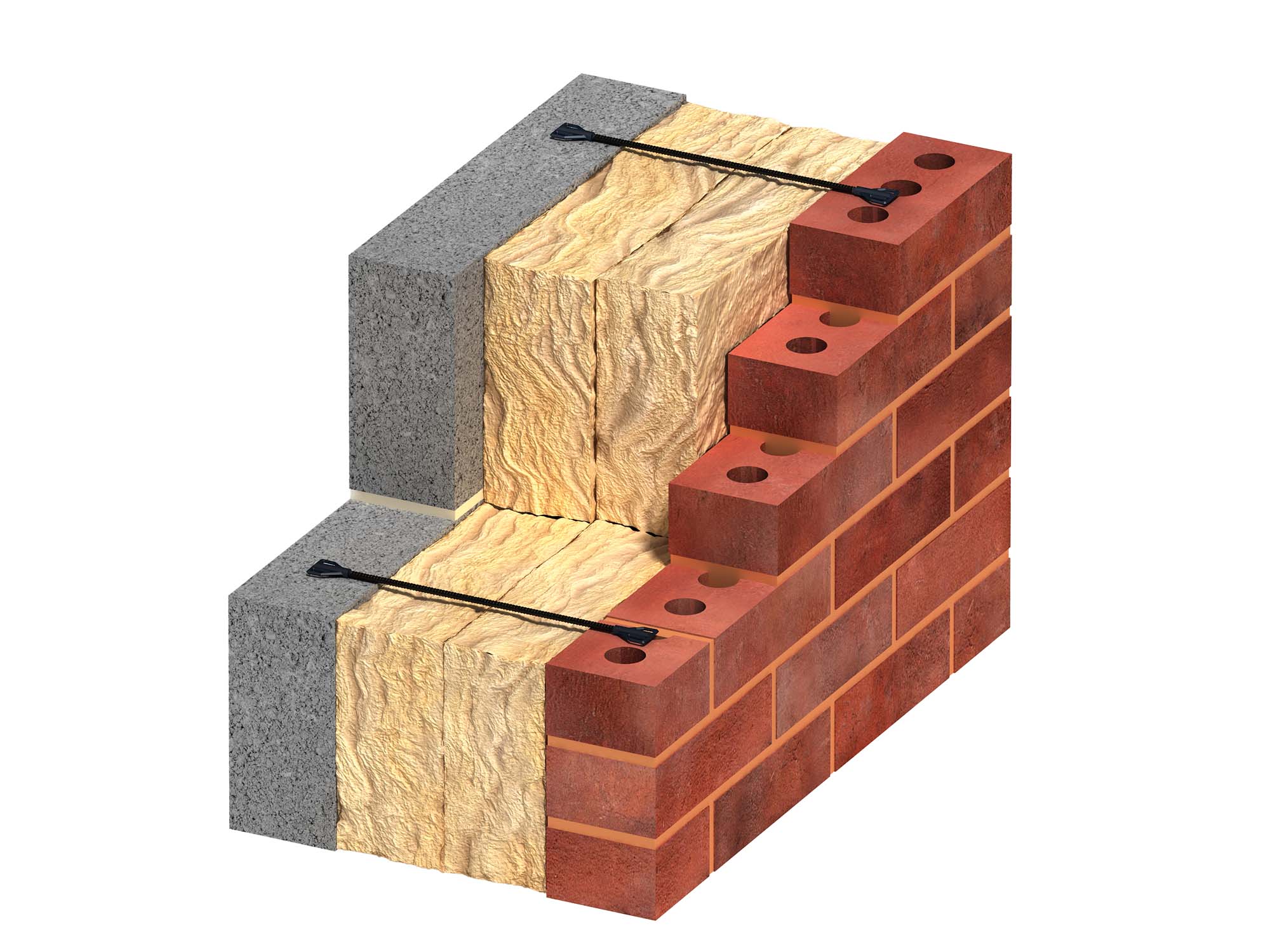

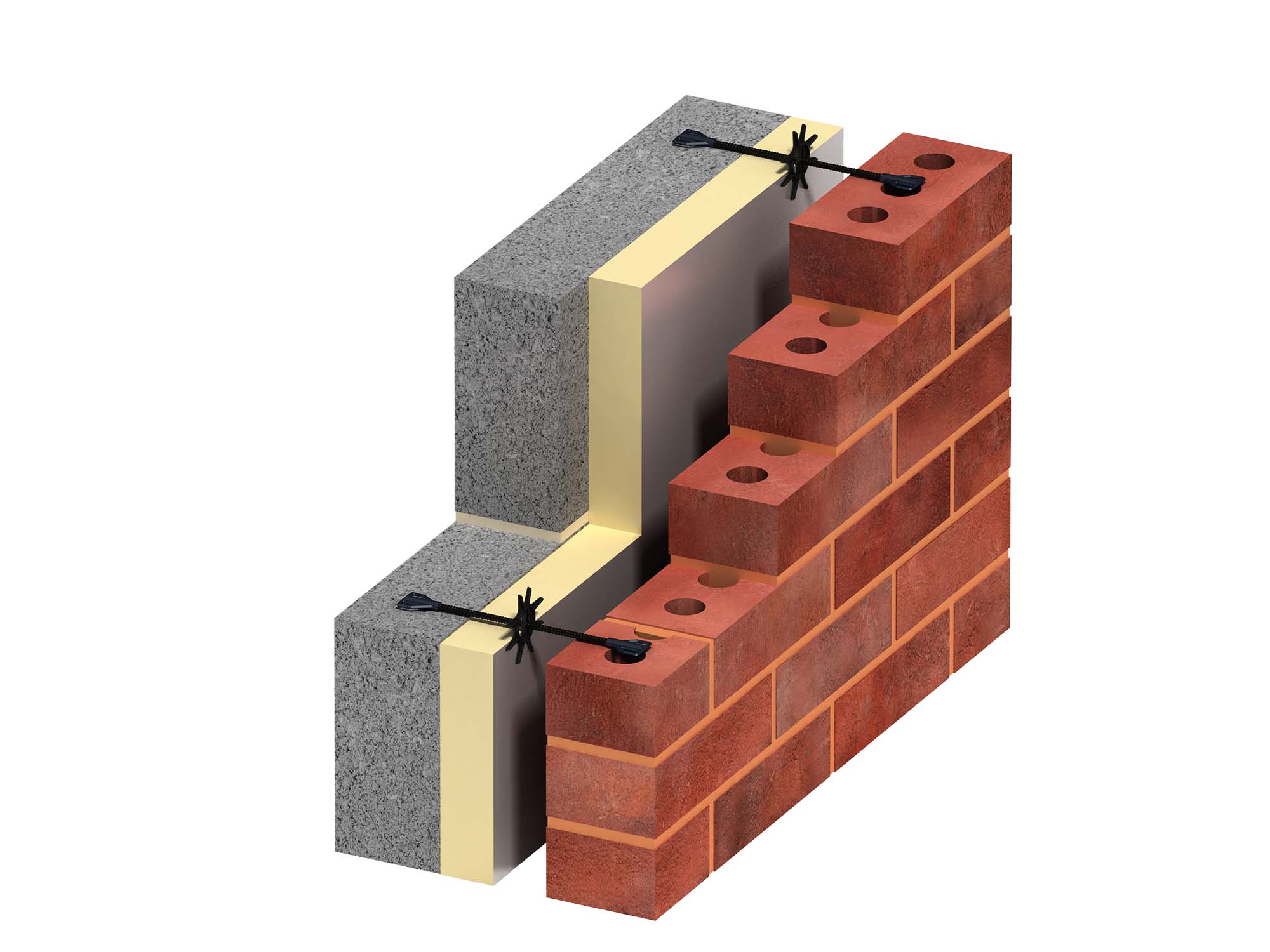

Developed for masonry to masonry cavity walls, the Teplo-BF features large safety ends that significantly improve build-ability and mortar bond strength.
Please view our certificates:
Uploaded to the website:
Distribution
For more information please see Ancon.co.uk
Technical datasheet
Detailed technical information can be obtained from the distributor.
Variants
Ancon Teplo-BF1 (Type 1)
Lengths available: 200, 225, 250, 275mm
Ancon Teplo-BF2 (Type 2)
Lengths available: 200, 225, 250, 275, 300, 325, 350, 375, 400, 425mm
Ancon Teplo-BF3 (Type 3)
Lengths available: 450, 500, 525mm
Ancon Teplo-BF4 (Type 4)
Lengths available: 200, 225, 250, 550, 575mm
Ancon Teplo-BFR (Tie type dependent on resin-end/ substrate)
Lengths available: 210 – 585mm
Ancon Teplo-R (Tie type dependent on resin-end)
Lengths available: 215 – 590mm
Details
Ancon Teplo-BFL-Basalt Fibre Frame Cramps
The Ancon Teplo-BFL-Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure.
It offers the same thermal benefits as a Teplo-BF cavity wall tie, with an additional stainless steel upstand which is mechanically fixed to one end of the tie to allow for a secondary fixing. The range has been independently tested and is BBA approved; a British Board of Agrément certificate is available to download online.
